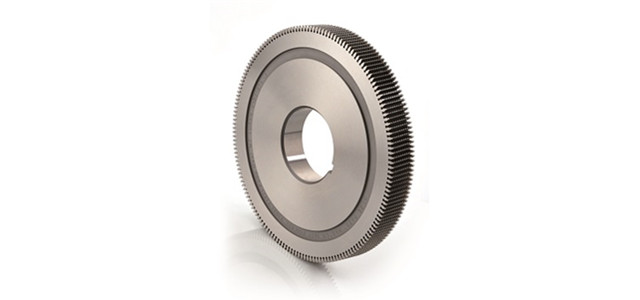

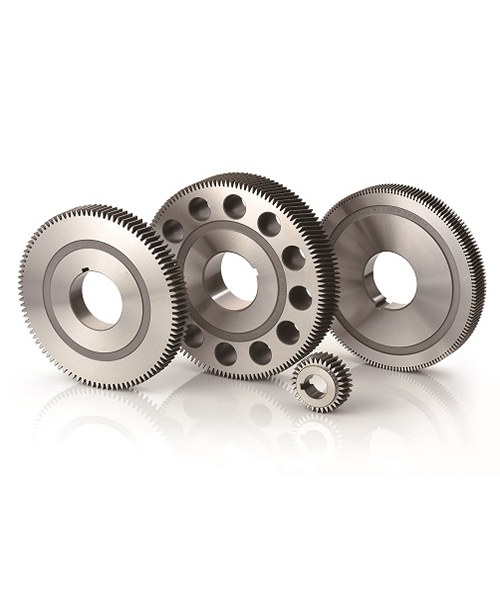

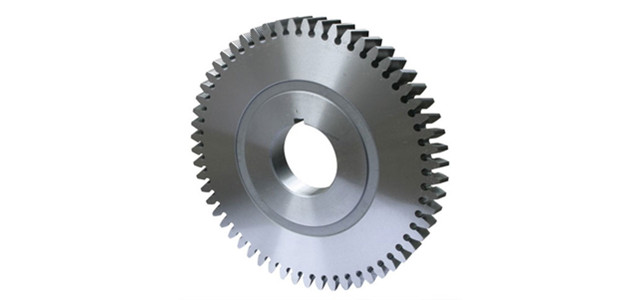

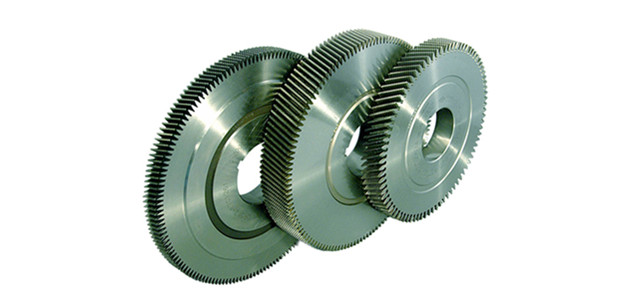

HSS Disk Type Gear Shaving Cutter

Module: m1-m9,DP,PA20

Ouside dia. 80-270mm

Quality: Class A GB

Material: HSS M2, M35

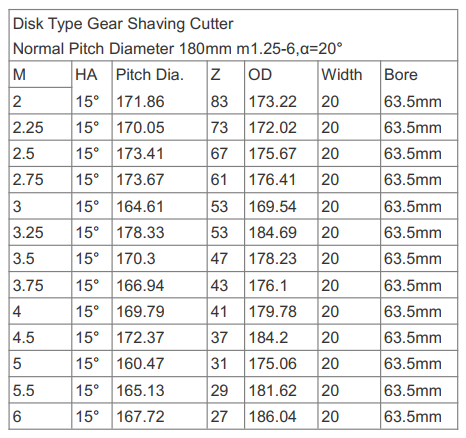

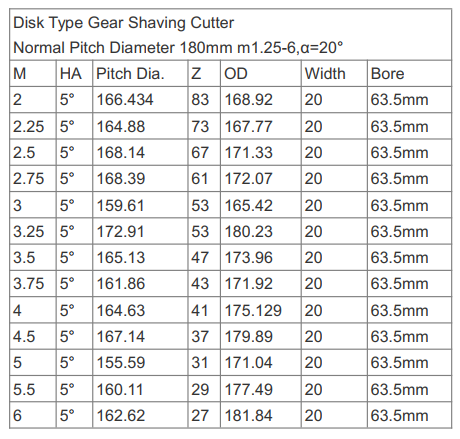

Specifications of standard disk type conventional gear shaving cutter with module 2-6, PCD180mm as following:

Manufacturing of various types of Gear Shaving cutters such as conventional and plunge-cut are undertaken

Special profiles are incorporated on the Cutter to generate tip relief, profile crowning, lead crowning, etc., on component

The Shaving machine at Jiangxing Tools tries out the Shaving cutter manufactured here, to confirm the profile accuracy. This is done at extra cost with necessary mandrels, component blanks, etc., supplied by the customer

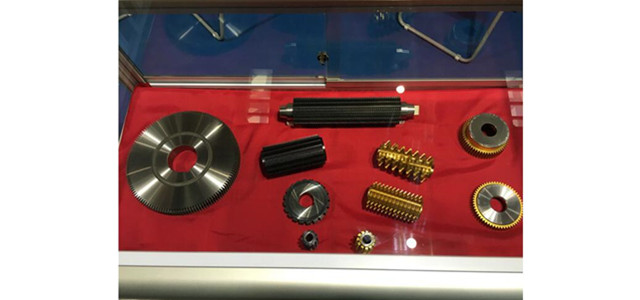

Pre-shaved tools like Hobs/Shaping cutters along with Shaving cutters can be supplied from a single source - Jiangxing Tools. Hence, design parameters can be worked out to achieve optimum results on the components
